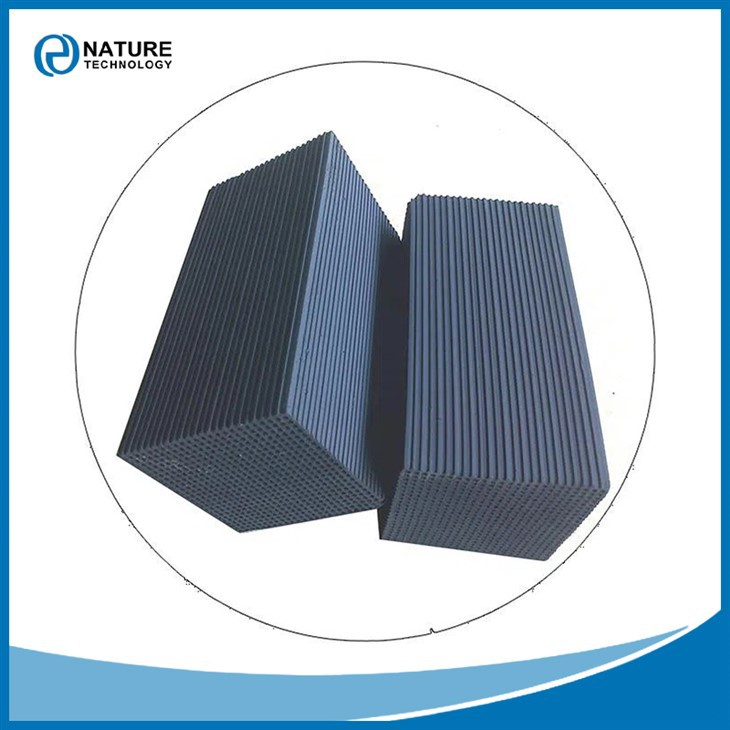

Waste Gas Adsorbed Activated Charcoal

Honeycomb activated charcoal is used for waste gas adsorption treatment. It has good purification effect and small wind speed resistance. The treated gas can meet the first level emission standard of national exhaust gas. It is suitable for the treatment of organic waste gas in large air volume,...
Product Details



Honeycomb activated charcoal is used for waste gas adsorption treatment. It has good purification effect and small wind speed resistance. The treated gas can meet the first level emission standard of national exhaust gas. It is suitable for the treatment of organic waste gas in large air volume, low concentration plant, adsorption and recovery of benzene, toluene, xylene, acetone, oil and gas, CS2 and other organic solvents, and the purification of industrial gas (such as CO2, N2, etc.).


Application characteristics of honeycomb activated carbon:

1) the structure of honeycomb activated charcoal is three-dimensional structure, which increases the contact time and contact area of gas and activated carbon, thus effectively improving the adsorption efficiency.

2) the wind resistance is small in the wind speed of 2 m / sec, and the wind resistance is less than 480 PPA.

3) not only has good adsorption properties, but also plays a role in collecting dust.



Item

Specification

Size (mm)

50*50*100

100*100*100

Iodine Absorb (mg/g)

≥850

Specific Surface Area (㎡/g)

≥900

CTC (%)

≥50

Compressive strength(mpa)

≥1.2

Moisture (%)

≤5

Square hole (in)2

100/150

Wall thickness (mm)

0.5-2.0

Temperature (℃)

≤400

Bulk Density g/cm3

0.35-0.60

Adsorption rate of benzene %

≥35

Note: other specifications can be produced according to customer requirements.
