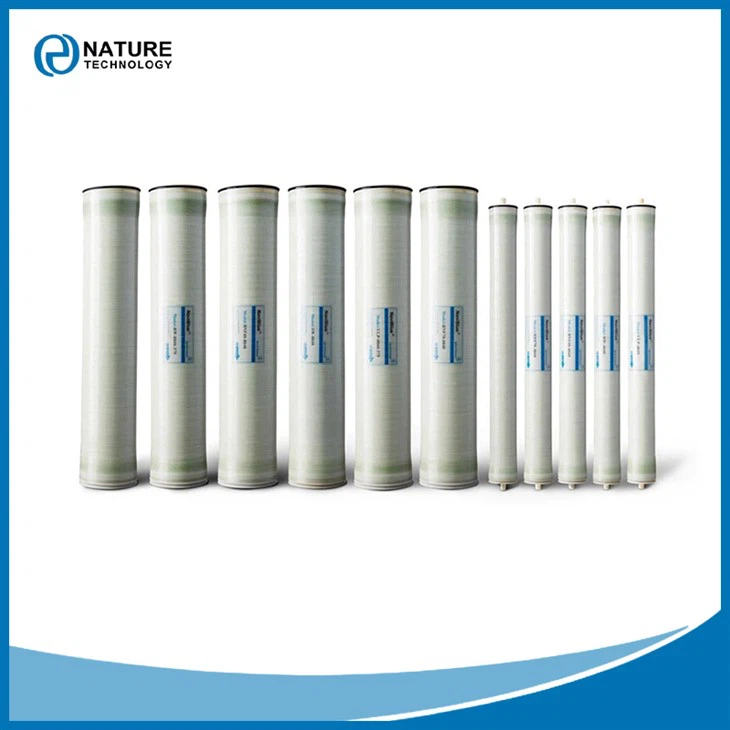

N70 Series Nanofiltration Membrane Elements
|
Introduction |
BHM, is attached to the Global 500 enterprise CHEMCHINA, Using polypiperazine-amide as the separating layer material, adjusting and control the formula of membrane-making liquid, which improve the membrane selective permeability to ion in feed water(low rejection of monovalent ions, high rejection of bivalent and multivalent ions) and anti-fouling performance.N70 series nanofiltration membrane elements are widely applied in solution desalination, brine refine and separation, concentration and refine of chemical material, biological agents and saccharides etc.
|
Membrane element performance |
|
Model |
N70-8040-28i |
N70-8040-34i |
N70-4040 |
|
|
Rejection rate (%) |
NaCl |
50-85 |
||
|
MgSO4 |
98 |
|||
|
Permeate flow m3/d(gpd) |
42(111,00) |
38(10,000) |
9.0(2,350) |
|
|
Width of inlet conduit(mil) |
28 |
34 |
34 |
|
Note: The final stable rejection rate after testing 30 minutes as the standard rejection rate; the fluctuation range of permeate flow is 15%
|
Testing conditions |
|
Pressure (Mpa/psi) |
0.75/110 |
|
Inflow concentration（NaCl） mg/L |
2000±50 |
|
Inflow concentration（MgSO4） mg/L |
2000±50 |
|
Temperature(゜C) |
25.0±1 |
|
PH value |
7-8 |
|
Recovery rate (%) |
15±1 |
|
Maximum operating conditions |
|
Pressure (Mpa/psi) |
4.1/600 |
|
Temperature(゜C) |
40 |
|
Inflow SDI |
5 |
|
Residual chlorine concentration of inlet water(mg/L) |
0.1 |
|
Inflow PH range during continuously operating |
3-10 |
|
Inflow PH range during chemical cleaning |
2-11 |
|
Max. pressure loss of single membrane element (Mpa/psi) |
0.10/15 |
